Surface finish: degreasing, phosphoric, powder coat.
Material: SPCC cold-rolled steel.
High-density vented door.
Exquisite design with precise dimensions and craftsmanship.
Advanced lock.
Welded frame, strong structure.
High-density vented front door and high-density double-section rear doors enable ventilation and reliable operation.
Adjustable side panel.
2 panels with screws, 2 high-speed fans, one 8-position PDU, equipped with 30 sets of screws.
| Product size (mm) | 600*600*2000 |
| Package size (mm) | 610*610*2020 |
| Net Weight (KG) | 72.75 |
| Gross Weight (KG) | 76.75 |
| Container loading quantity (HQ40) | 87 |

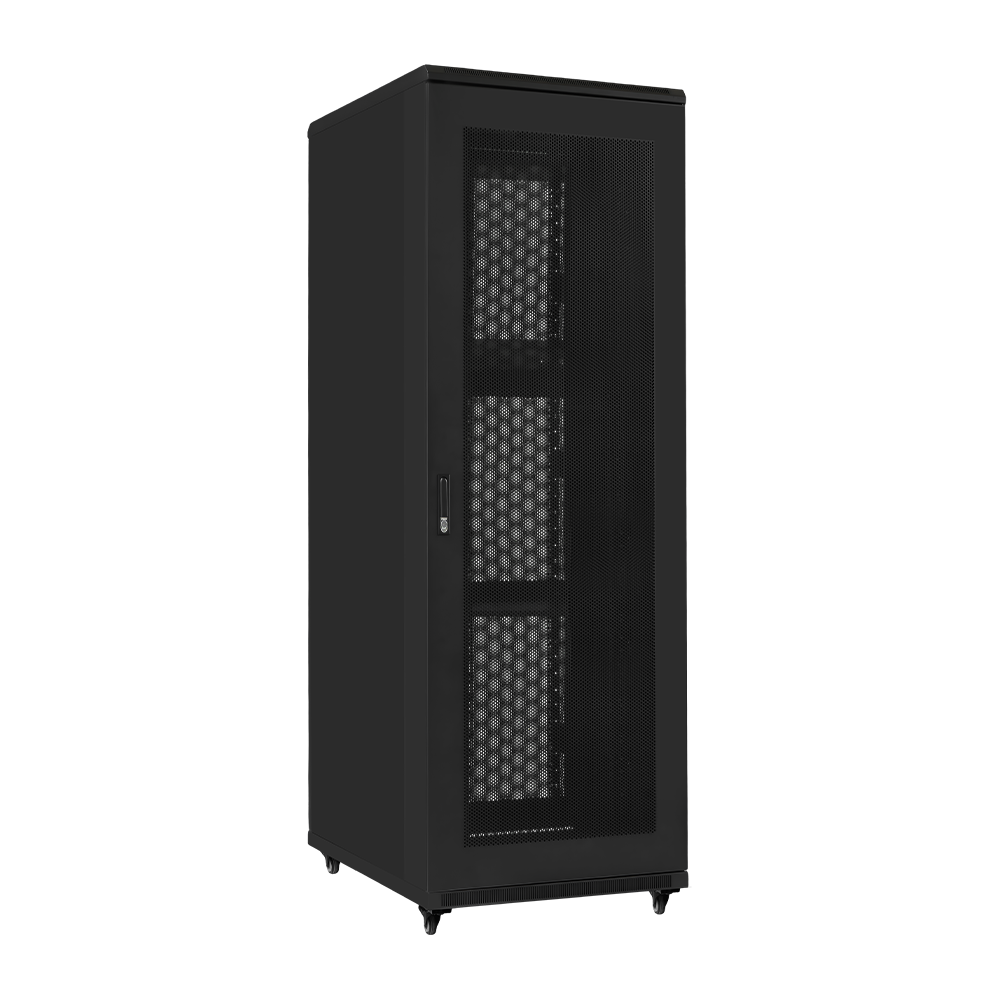

This product is a 42U high-performance rack cabinet built to the international 19-inch standard, engineered for modern data centers, enterprise network rooms, and industrial control environments.
With an all-steel frame and high-density ventilated mesh doors, it provides secure equipment housing while supporting efficient airflow management for heat-sensitive IT deployments. It is an ideal infrastructure solution for servers, network devices, and storage systems.
Front and rear mesh doors support consistent airflow circulation, helping improve overall cooling performance in rack installations.
The mesh design uses φ6 mm circular perforations with an open area of ≥65%, balancing ventilation with basic physical protection.
An optional top-mounted fan module is available, with support for temperature-controlled operation depending on configuration.
Fully compliant with 19-inch mounting standards, compatible with mainstream rack-mounted equipment.
Removable side panels and detachable front/rear doors simplify installation and servicing.
Door opening direction can be configured to suit different site layouts.
Three-point locking system with key lock enhances physical access control.
Integrated vertical cable routing channels at the front and rear support structured cable management and cleaner airflow paths.
Expansion options are available for additional horizontal cable organizers.
Mesh doors allow quick visual inspection of installed equipment indicators without requiring door removal.
Heavy-duty casters combined with adjustable leveling feet enable both convenient relocation and stable final positioning.
Supports cabinet alignment and multi-cabinet deployment through removable side panels.
Compatible with standard PDUs (depth clearance up to ≤50 mm, depending on installation method).
Supplied with square mounting hardware compatible with 10#-32 and M6 fastener specifications.
Enterprise Data Centers: Centralized server and storage deployment
Network Core Rooms: Installation of switches, routers, and backbone equipment
Industrial Automation: Housing PLC systems and industrial control devices
Telecom Sites and Base Stations: Mounting transmission equipment and fiber distribution frames
