Surface finish: degreasing, phosphoric, powder coat.
Material: SPCC cold-rolled steel.
High-density vented door.
Exquisite design with precise dimensions and craftsmanship.
Advanced lock.
Welded frame, strong structure.
High-density vented front door and high-density double-section rear doors enable ventilation and reliable operation.
Adjustable side panel.

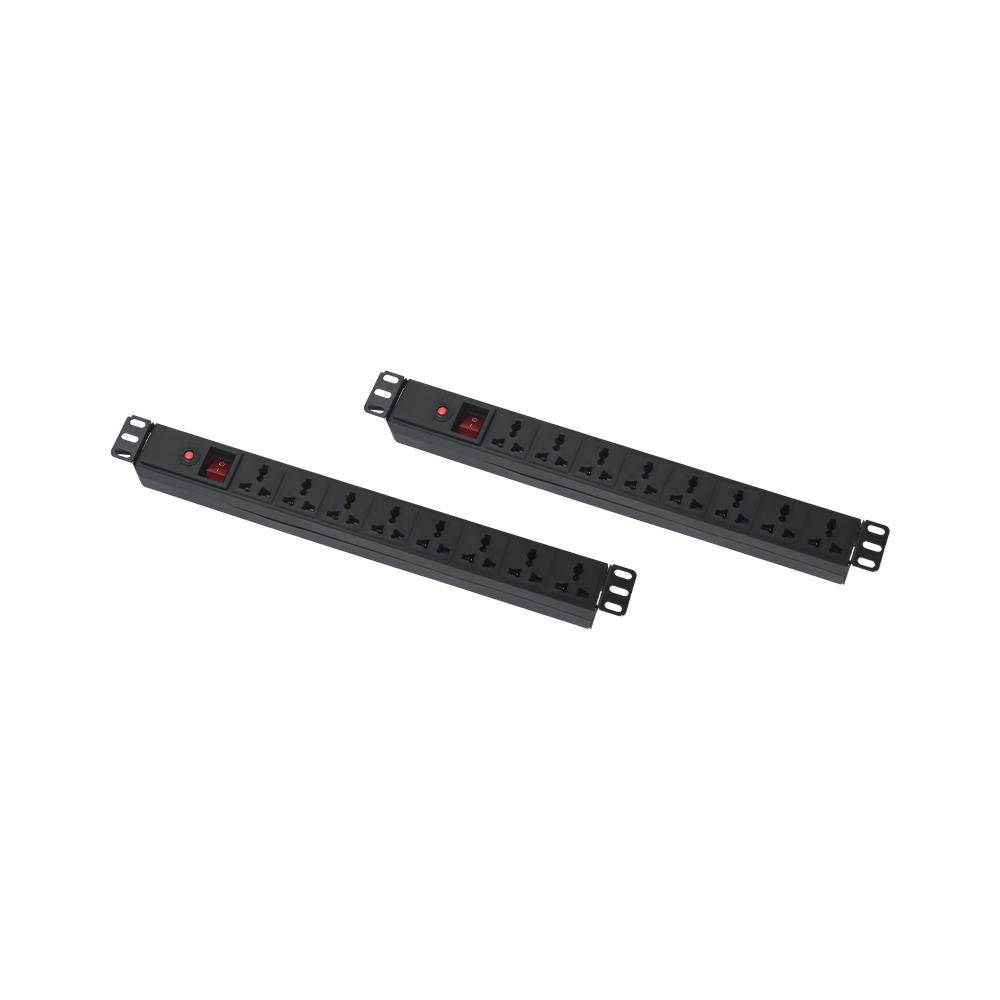

2 panels with screws, 4 high-speed fans, one 8-position PDU, equipped with 30 sets of screws.
| Product size (mm) | 600*1200*2000 |
| Package size (mm) | 610*1210*2020 |
| Net Weight (KG) | 117.15 |
| Gross Weight (KG) | 119.15 |

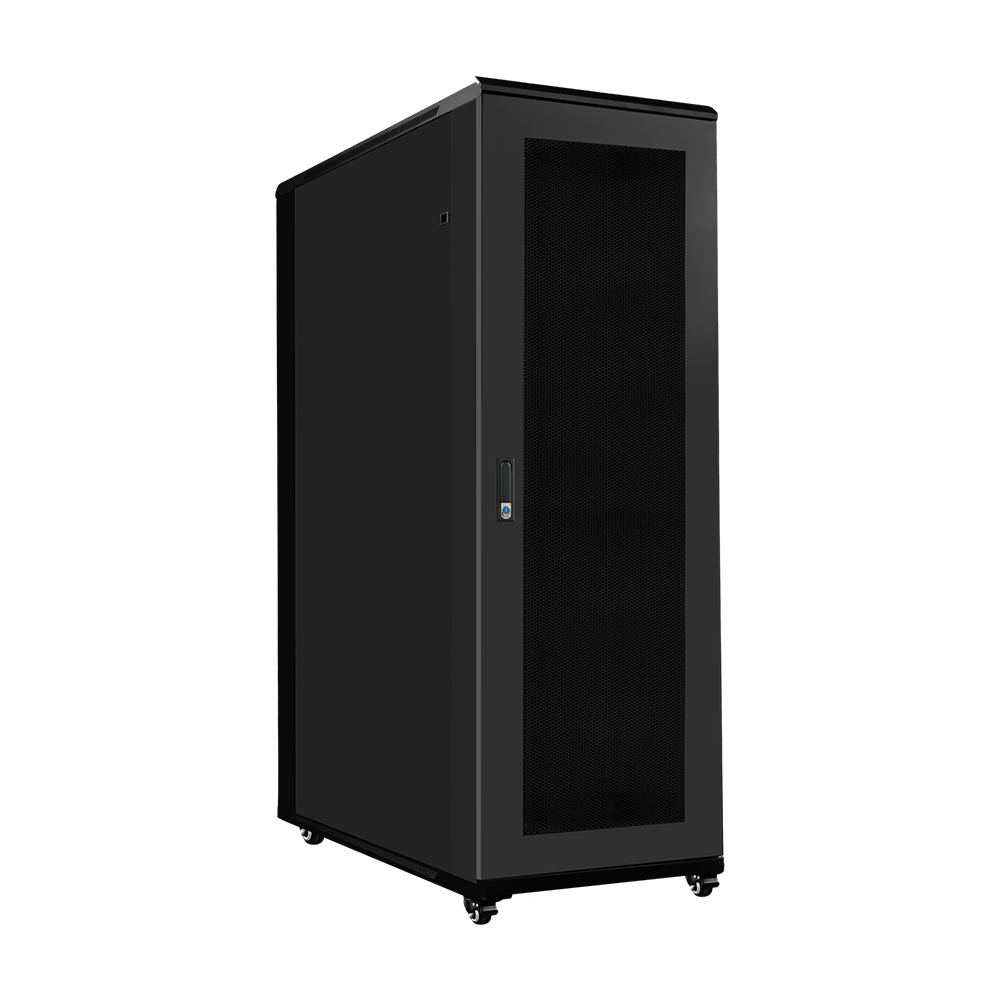

This product is an ultra-deep standard rack cabinet engineered for high-power-density servers, deep storage platforms, and large-scale network core equipment.
With its 1200 mm extended depth and high-efficiency ventilated mesh door design, it addresses the demanding requirements of modern data centers for equipment clearance, airflow management, and structured cabling, making it an ideal enclosure for mission-critical enterprise IT deployments.
The 1200 mm depth supports installation of full-length servers, storage arrays, and large networking chassis commonly used in enterprise environments.
Generous rear clearance is reserved for cable routing, redundant power modules, airflow spacing, and proper cable bend radius management.
Designed to accommodate structured cable management accessories and high-density rear connections.
Full-height perforated mesh doors on both the front and rear promote consistent front-to-back airflow, supporting hot/cold aisle deployment strategies.
High open-area ventilation improves heat dissipation performance in continuous high-load operation.
Optional fan or exhaust modules can be integrated depending on site cooling architecture and equipment requirements.
Reinforced cold-rolled steel construction provides structural stability for high-density equipment installations.
Key load-bearing areas are strengthened for long-term durability in data center environments.
Suitable for heavy server and storage deployments with high static load demands.
Integrated vertical cable management channels support organized routing of power and data cables, improving maintainability and airflow efficiency.
Multiple top and bottom cable entry points enable flexible overhead or underfloor cabling layouts.
Quick-release door hinges and removable side panels simplify equipment installation and servicing.
Locking casters with adjustable leveling feet allow both mobility during deployment and stable positioning during operation.
Designed to support efficient maintenance workflows in enterprise and colocation environments.
