Surface finish: degreasing, phosphoric, powder coat.
Material: SPCC cold-rolled steel.
High-density vented door.
Exquisite design with precise dimensions and craftsmanship.
Advanced lock.
Welded frame, strong structure.
High-density vented front door and high-density double-section rear doors enable ventilation and reliable operation.
Adjustable side panel.
2 panels with screws, 2 high-speed fans, one 8-position PDU, equipped with 30 sets of screws
| Product size (mm) | 600*600*1000 |
| Package size (mm) | 610*610*1020 |
| Net Weight (KG) | 43.3 |
| Gross Weight (KG) | 44.8 |
| Container loading quantity (HQ40) | 133 |

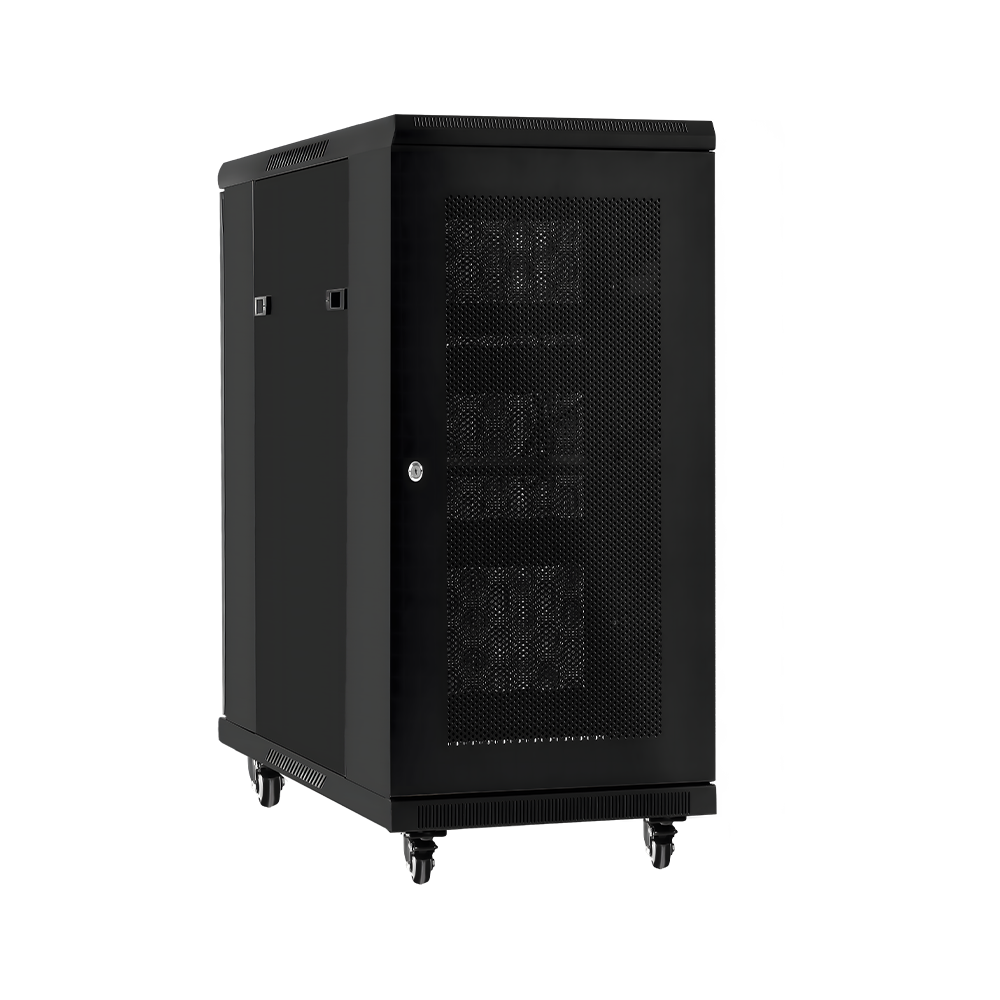

This product is an ultra-compact server rack cabinet engineered for environments with limited vertical clearance. With a standard 600 mm width and a low-profile 1000 mm overall height, it provides an efficient and economical equipment housing solution for network wiring closets, low-voltage equipment rooms, and edge computing micro-deployments.
Its ventilated, perforated door design supports basic airflow requirements while maintaining secure enclosure protection, making it well-suited for compact infrastructure installations.
The 1000 mm height is optimized for installations where ceiling height or available vertical space is limited.
Suitable for deployment in small technical closets, branch-office equipment rooms, or edge nodes with constrained footprint requirements.
Cabinet depth supports common networking hardware, shallow-depth servers, and modular switching equipment.
Front and rear perforated doors promote front-to-back airflow circulation, helping maintain stable operating conditions for installed devices.
The perforation pattern balances ventilation performance with basic physical protection
Appropriate for deployments relying on room-level cooling or moderate equipment heat loads.
Cold-rolled steel frame provides reliable rigidity for conventional IT and networking equipment installations.
Adjustable leveling feet ensure stable positioning on uneven floors and support secure long-term operation.
Designed for practical load requirements in compact infrastructure environments.
Top and bottom cable entry points allow flexible routing of power and data connections.
Optional internal cable management accessories help maintain a clean and organized installation.
Supports floor-standing installation and optional wall-mount deployment with the appropriate mounting bracket.
Removable doors and accessible panel design simplify equipment installation, upgrades, and routine maintenance.
The mechanical locking system helps prevent unauthorized access.
Grounding provisions support safe operation in professional IT environments and standard cabinet safety requirements.
Network Wiring Closets: Switches, routers, patch panels, fiber distribution units.
Low-Voltage Equipment Rooms: Building automation, security systems, PBX equipment.
Edge Computing Micro-Nodes: IoT gateways, lightweight servers, industrial networking devices.
Retail & Service Locations: POS servers, surveillance storage, digital signage controllers.
